Cavern QuickEQ (Home version) user guide

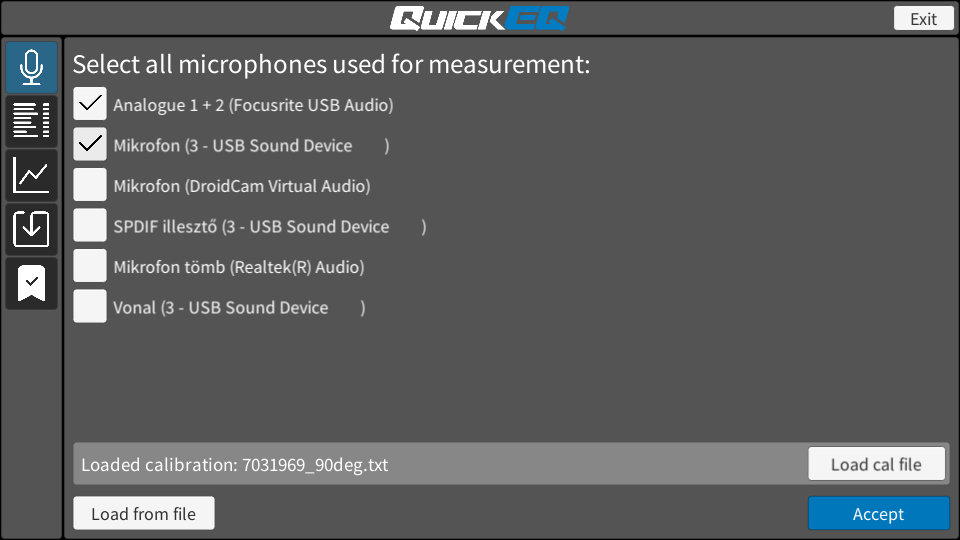

Step 1: Microphone
Select and set up your microphone on this screen. Multiple microphones can be selected by checking the box on the left of their names. A single calibration file can be loaded for all microphones, this requires all used calibrated microphones to be the same model. Measuring at multiple positions is possible with a single microphone too.
Load cal file
Click this button to open a file picker and select the microphone calibration. If multiple calibration files are available, choose the one that's made for the microphone when it points upwards. For the MiniDSP UMIK-1, it's the 90° file.
This is only an advertisement and keeps Cavern free.
Load from file
Measurements can be saved to be re-evaluated later. This button allows you to open those save files and change export settings without having to re-measure your system.
Accept
Finalize the microphone and advance to the next step. Click this button and select the Step 2: Measurement tab on the top of this page.
